Tag Archive for 200A

Custom Shop: White Wurltizer 200A*

I’m Dreaming of a White (Wurli) Christmas…

2015-12-14 17.56.36

Here’s the latest custom Wurlitzer from our custom shop: The White Wurlitzer 200A.

This Wurlitzer 200A was a conversion from a Classroom Wurlitzer 206A piano set that we acquired earlier this year. The classroom pianos make great candidates for customization because they are usually in excellent condition internally due to lighter use (although that may not always be the case). We added the classic 200A vibrato circuitry and a reproduction 200A face plate to finish it all off. Have a look here:

2015-12-14 17.57.17

2015-12-14 18.01.52

2015-12-14 18.03.26

2015-12-14 18.06.07

2015-12-14 18.02.29

2015-12-14 18.01.32

2015-12-14 18.05.03

2015-12-14 18.07.06

2015-12-14 17.59.49



2015-12-14 17.56.49





For Sale: Wurlitzer 206A Restored to Order

ROTATED 206A Photo

Here comes another set of Wurlitzer student models through our workshop for restoration! We recently acquired a full classroom set of Wurlitzer 206A pianos from a local music school that no longer had room for the electro-mechanical instruments. If you are not familiar with the model 206A it is an identical instrument to the 200A with a larger speaker bass. They are ideal models for recording studios or they can be easily converted to 200A specifications with reproduction legs and sustain pedals.

For a complete list of our inventory of pianos currently being restored click here.

IMG_1606

2014-12-02 15.01.25

2014-12-02 15.01.17

IMG_1605

We understand that the tan or beige finish doesn’t immediately seem very rock and roll but in fact these pianos look great under colorful stage lighting. They are also ideal candidates for custom cosmetics and we have used 206A for the custom White Wilco Loft Wurlitzer and Kesha’s Psychedlic Wurlitzer.

WILCO-White-Wurli-206

2014-06-17 10.48.18

Base Price: $2,799

Base Price Includes:

  • Complete Key Bed Leveling Including Setting Black Key Height
  • Regulation of Key Travel Distance
  • Replaced Fly Springs and Fly Felts in Action Assembly
  • Complete Regulation of the Action Assembly
  • Re-cap of the Amplifier Electrolytic Capacitors
  • 200A style vibrato is installed (unless otherwise requested)
  • Low Noise Preamp Transistors and Output Amp Transistors
  • Complete Tuning and Voicing Setup

Common Upgrades: (Contact for Quote)

  • Warneck Research EP200A Amplifier
  • Speaker Upgrades (Alnico is common upgrade for warmth in mids and bass)
  • Custom Cosmetics (painted lid/tolex & grill cloth)
  • Conversion to 200A “Chop”

If you check back in frequently with our blog then you may find these pianos familiar from a previous posting following our first round of service with the pianos. We kept these pianos in great tuning and regulation for the past several years so we can say with confidence that they are ideal candidates for restoration. You can see their debut post here.

Live from #CEPCo: Spare Parts “Loose Cannon”

Live from The Chicago Electric Piano Company: Spare Parts “Loose Cannon.”

Spare Parts dropped back by the warehouse studio to produce another live video featuring Chris Neal on Tenor Sax and Rich Stitzel on Percussion.

Live From The Chicago Electric Piano Co.: Spare Parts

Friends of the workshop Spare Parts, a Chicago rooted fusion trio, stopped by to film a live performance in the back of our warehouse.

Here is one of the groovy live takes captured in the back of our warehouse featuring Kevin Kozol’s recently overhauled Wurlitzer 200A:



A Rare Breed Indeed: The Wurlitzer 214A

Forgive us for the shameless self promotion but we are currently selling one of our favorite Wurlitzers that has come through our shop in some time. It’s not too often that you come across the Wurlitzer 214A and perhaps it could use a re-introduction. Here she is, the Wurlitzer 214A, a rare breed indeed:

Main Shot



The Wurlitzer 214A is one of the flagship pianos of the 200A family. Like other members of the 200 family it has an action assembly that can be setup and maintained to perform like a sports car. There’s no excuse for poor action in a Wurli!

Like the Student Model 206A the 214A was marketed to a classroom setting and likely has not seen the abuse that many 200A’s have experienced ‘living the rock and roll dream.’ For decades, many of the 203, 206, 207, and 214 pianos have been preserving themselves as time capsules in rehearsal rooms and classrooms for future generations to bring back to life. This makes them some of the most valuable instruments to pick up used.

The distinguishing characteristic to the 206A would be that it has four 8″ speakers, rather than two, and the 214 also has the signature Wurlitzer vibrato circuitry. On the 214A there are two sets of 8″ speakers are mounted on each side similar to the Rhodes suitcase piano which gives it a rich, full sound within the room. Another added feature from the 206 is the casters that allow you to easily transport the piano.

And this one in no exception! As always, we promise you she sounds even better than she looks!

Wurlitzer 214

back2

Knobs

leveled keys

white key dip copy

Black key heigh

black key dip

Outputs2

As always, we have rebuilt this Wurlitzer from the key bed up for most expressive action possible. It comes with our 2 year parts warranty (under reasonable use) and a free tuneup within two years. –You won’t find a better 214A or service like ours anywhere else in the world!

What is the difference between a Wurlitzer 200 and 200A?

Is my Wurlitzer a 200 or a 200A?

Because of their identical cosmetic design, it is common for people to mistake a 200 for a 200A and vise versa. Even when taking a close look under the hood, you will find that their action assemblies and the reeds that produce their sound are perfectly identical, leaving only a few distinguishing characteristics to look and listen for.

Side Note: Actually, the cosmetics of each instrument can be differentiated from one another in some cases. There were a few color options that were only available on the 200 (red, forest green, and beige) that were not available on the 200A. Another distinguishing cosmetic note is that the Wurlitzer emblem on the back of the keyboard from the player was only on the last few years of the 200A.

When the 200 was first introduced in 1968 its amplifier was an early transistor circuit with a straightforward design. Over the next four years, the amplifier would be redesigned a few times with a couple of minor improvements that marginally improved both the power amp and the clarity of the preamp. These four years are also characterize by the 200’s 4×8″ speakers driven by alnico magnets that were mounted on the amplifier rail inside of the instrument.

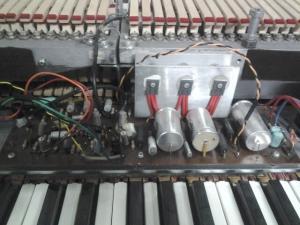

200 Amplifier

200 Amplifier

2013-02-21 12.48.09

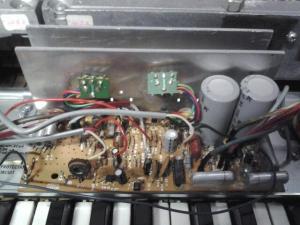

200A Amplifier

Wurlitzer discontinued the 200 in 1972 when they began the production of the 200A. The new 200A was nearly perfectly identical to the 200 with the exceptions of a newly designed amplifier additional shielding against interference that subtly improved the Wurlitzer Electric Piano. After a year or so of 200A production the alnico driven speakers were now driven by ceramic magnets and were mounted directly on the vinyl lid of the Wurlitzer rather than the amplifier. The mounting pins on the lid of the Wurlitzer are one of the fastest ways to identify most 200A’s.

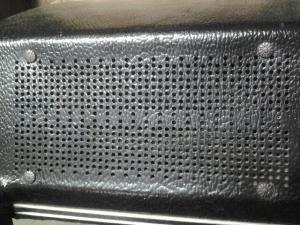

Mounting Pins of the 200A

Mounting Pins for the 200A’s Speakers

The most notable improvement of the 200A is that it is naturally less susceptible to noise and interference the former 200 amplifier due to three new factors. First, the distance between the preamp and the amplifier reduced much of the noise caused by the amplifier’s electromagnetic field. Next, Wurlitzer added an additional pickup shield that helped protect the pickups from picking up radio frequencies and other external interference. Last, the AC wiring from the power source to the transformer was placed within a strip aluminum tubing that shielded the amplifier from the electromagnetic field produced by the AC current running to the power transformer behind the amplifier. (We can’t figure out why they didn’t just simply put the AC receptical on the other side of the instrument and avoid this design flaw all together!)

Aside from the noise reducing measures made by the 200A, the differences between the two amplifiers are negligible. Both have a vibrato (–tremolo) circuit, and a static equalizer curve set by their amplifier’s design that limits the players control over the tone of the instrument without additional external amplification. In the end, both incorporate one of the best action assemblies of any electric piano and deliver that classic Wurlitzer tone that we just can’t get enough of.

…It is also common that players will complain about their amplifier being “muddy” or “dull” when in fact the amplifier is perfectly fine. This is due to the fact that most Wurlitzers have not been regulated properly over the years and therefore their hammers do not produce the proper strike of the instrument. Bring your Wurlitzer in for a free estimate and we can show you how to instantly get more clarity and dynamics from your instrument!
